Superalloy-GH2132
-
-
Superalloy
Grade：
GH2132（GH132、A286\UNSS66286P.Q.A286、ZbNCCT25）Standards and Technical Conditions：
GB/T 14992 GB/T 14995 GJB 3020A GJB 3165A GJB 3317A GJB 3782A GJB 5280 GJB 5301 HB/Z 140 YB/T 5245 Q/3B 4071
-
Product Characteristics
-
GH2132 and premium GH2132 are Fe-Ni-Cr based precipitation hardened wrought superalloy, with a service temperature range of 253℃ to 650℃. Premium GH2132 alloy further improves purity to increase strength, reduces sulfur, gas and trace element content, and adjusts the heat treatment procedure. Both alloy have good high and low temperature strength and long-term stability, good corrosion resistance and thermal deformation performance, and possess good processing plasticity and satisfactory welding performance.
-
Industrial Application
-
It is suitable for manufacturing the high temperature load-bearing components, such as: turbine disks, compressor disks and fasteners for aviation & aerospace, land-based gas turbines, and flue gas turbines. The main products include: disks, forgings, plates, bars and rings.
-
Company Product Applications
-
Bars produced by the Company are used for gas turbine disks.
Common Delivery Condition
Standard Heat Treatment Procedure
Excerpted from HB/Z 140, Q/3B 4071

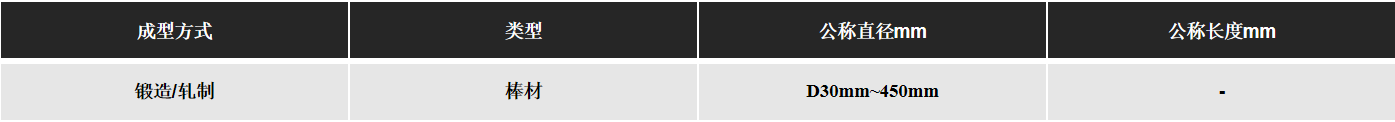

Main Specifications
? ? ? ? ? ? ? ? ? ? Delivery condition：
? ? ? ? ? ? ? ? ? ? Bars do not undergo the heat treatment, supplied after grinding or turning;
? ? ? ? ? ? ? ? ? ? Bars shall undergo the heat treatment, supplied after turning.
Chemical Composition
Excerpted from GB/T 14992
Mechanical Properties
Hardness
Impact Toughness

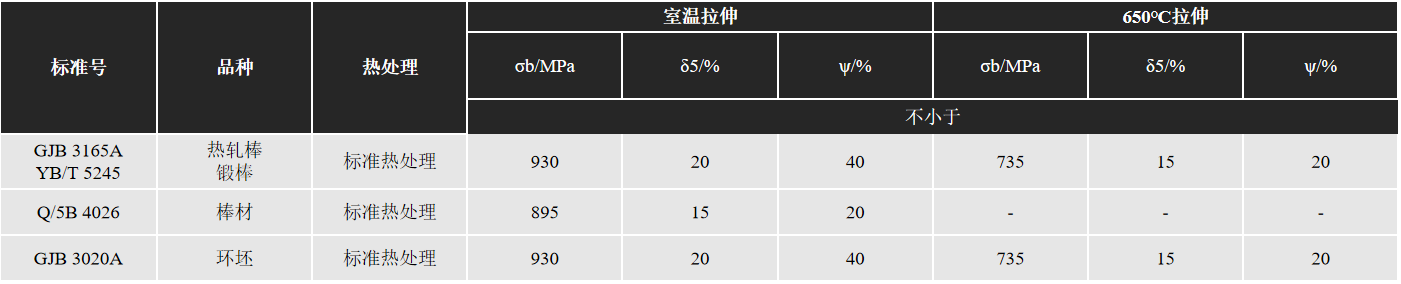

Tensile Properties

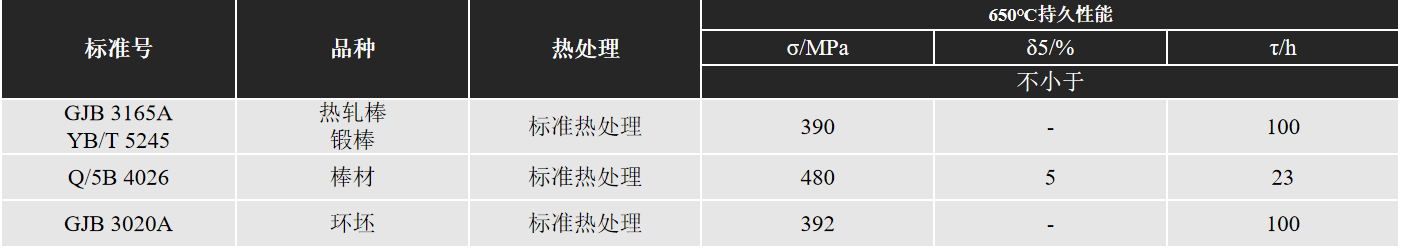

Endurance Properties
