Alloy Structural Steel-30CrMnSiA
-
-
Alloy Structural Steel
Grade：
30CrMnSiAStandards and Technical Conditions：
GJB 1951-94、GB/T3077-1999（2015）、GJB 2720-96 。
-
Product Characteristics
-
30CrMnSiA belongs to medium-carbon alloy structural steel, with relatively poor welding performance. 30CrMnSiA has very high strength and good toughness after quenching and tempering, and also has good hardenability. 30CrMnSiA has good machinability, very small machining deformation, and fairly good fatigue resistance.
-
Industrial Application
-
The alloy's main products are bars and forgings. 30CrMnSiA steel plate is commonly used in enterprises. With small machining deformation, it can withstand long-time and high-intensity work. It is often used to make piston components, sprockets, large cutting gears, etc., and is also often applied to some special wear-resistant parts on automobiles and aircraft.
-
Company Product Applications
-
The bars produced by the Company are applied to weapons.
Common Delivery Condition

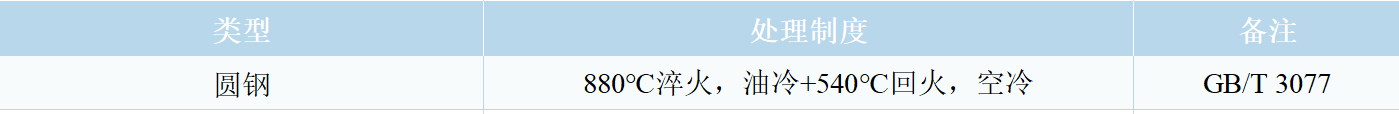

Standard Heat Treatment Procedure

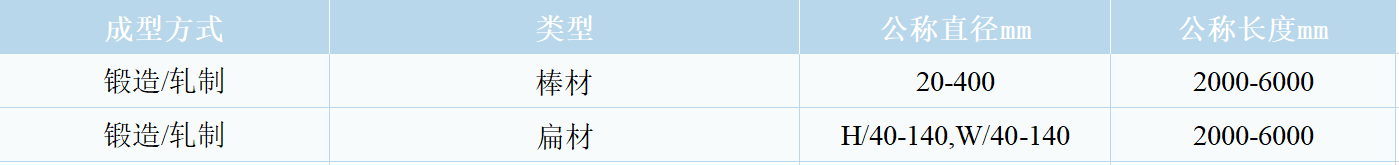

Main Specifications
Delivery Condition
Bars undergone the heat treatment or solid-solution, supplied after polishing or turning; flat bars?requires solid-solution and aging heat treatment and is supplied after turning

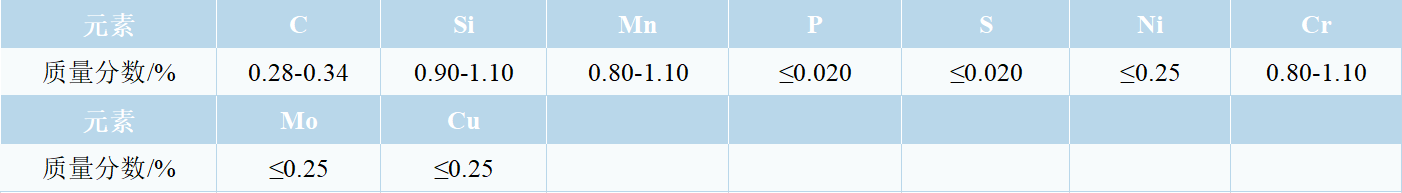

Chemical Composition
