Alloy Structural Steel-21CrMoV5-7
-
-
Alloy Structural Steel
Grade：
21CrMoV5-7Standards and Technical Conditions：
EN 10269、PTA20231649
-
Product Characteristics
-
21CrMoV5-7 is a high-temperature alloy steel, having excellent mechanical properties and heat resistance, suitable for high-temperature and high-pressure environments.
-
Industrial Application
-
It is widely applied in power generation, petrochemical, aviation & aerospace, and other fields, especially suitable for manufacturing critical components under high temperature and high pressure conditions, such as steam turbine blades, rotors, high temperature pipelines, and reactors.
-
Company Product Applications
-
The products produced by the Company are mainly applied to steam turbine blades and rotors.
Common Delivery Condition

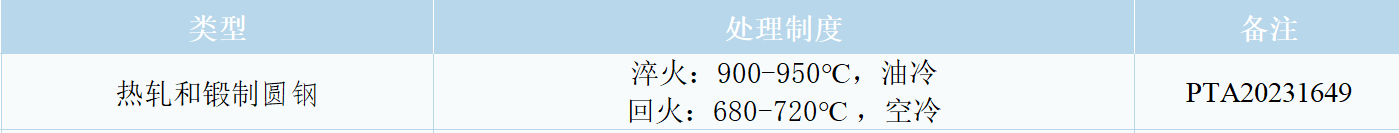

Standard Heat Treatment Procedure?

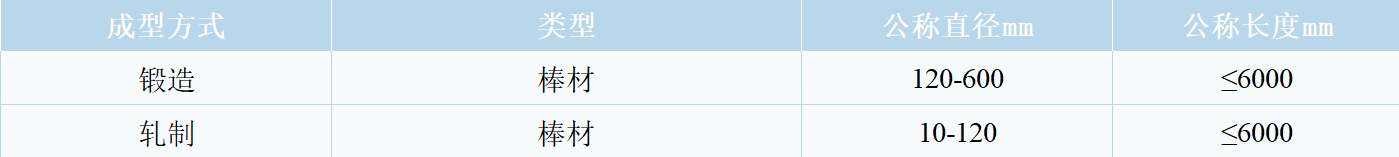

Main Specifications
Delivery Condition
Bars are delivered in the annealed or high-temperature tempered condition.
Chemical Composition

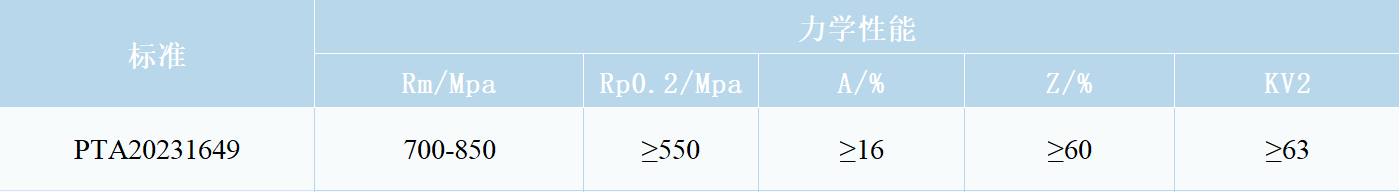

Mechanical Properties
Physical Properties
