Precipitation Hardened Stainless Steel-04Cr15Ni7Cu2MoNbVN
-
-
Precipitation Hardened Stainless Steel
Grade：
04Cr15Ni7Cu2MoNbVN（UNS S45000、Custom 450、C450、A564 X-25、GE B50A789、K11C88B）Standards and Technical Conditions：
B50A789、AMS 5773、ASTM A564
-
Product Characteristics
-
04Cr15Ni7Cu2MoNbVN is a Cr-Ni-Cu-Mo-Nb low-carbon martensitic precipitation hardened stainless steel, mainly strengthened by low-carbon martensitic transformation, carbide precipitation and intermetallic compound precipitation Its mechanical properties are primarily determined by the aging temperature. This alloy features very good corrosion resistance (similar to 304 stainless steel), medium strength (similar to 410 stainless steel), excellent oxidation resistance at 650℃, and good machinability and weldability.
-
Industrial Application
-
The alloy's main products include bars, plates, tubes and strips. They are widely used in and civilian fields, such as aviation, aerospace, marine vessels, and steam or gas turbine blades, blowers and food-processing equipment.
-
Company Product Applications
-
Bars produced by the Company are used for gas turbine moving blades.
Common Delivery Condition

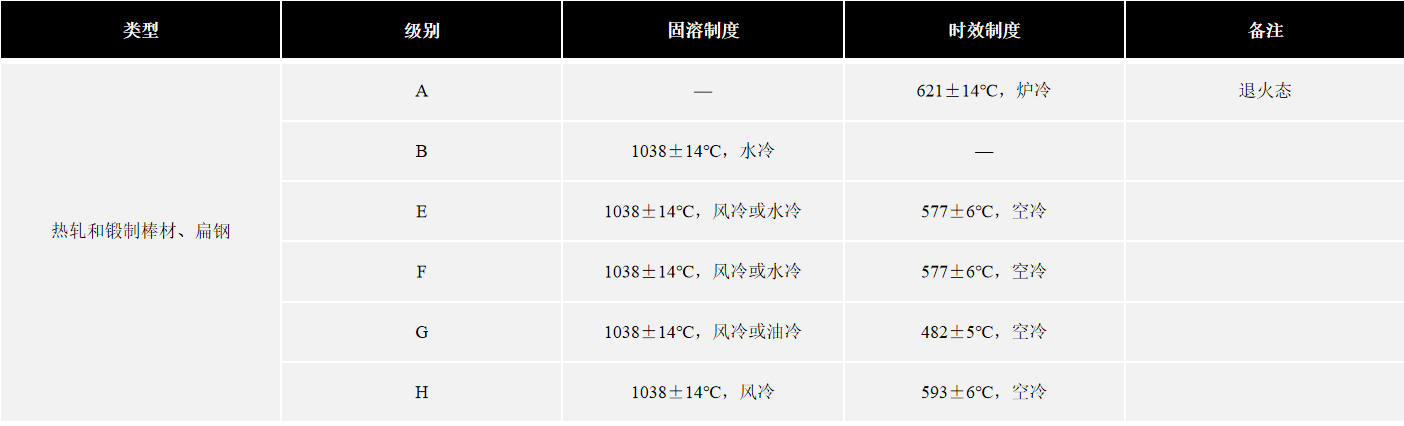

Standard Heat Treatment Procedure?
Excerpted from?AMS5773
Excerpted from?B50A789 REV.H

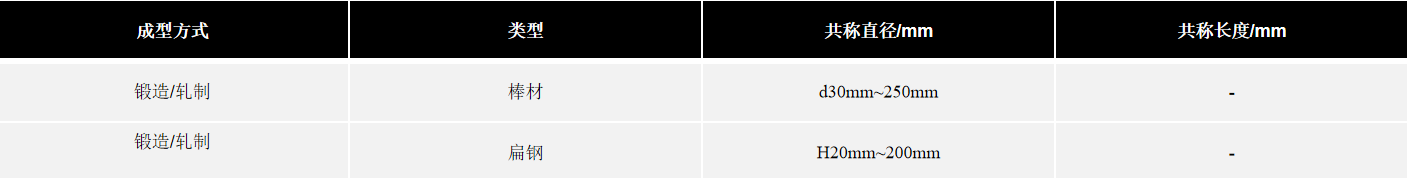

Main Specifications
Delivery Condition:
Bars: annealed or quenched-and-tempered, supplied after turning；
flat bars：annealed or?solid-solution / solid-solution + aged, supplied after shot-blasting or milling
Chemical Composition

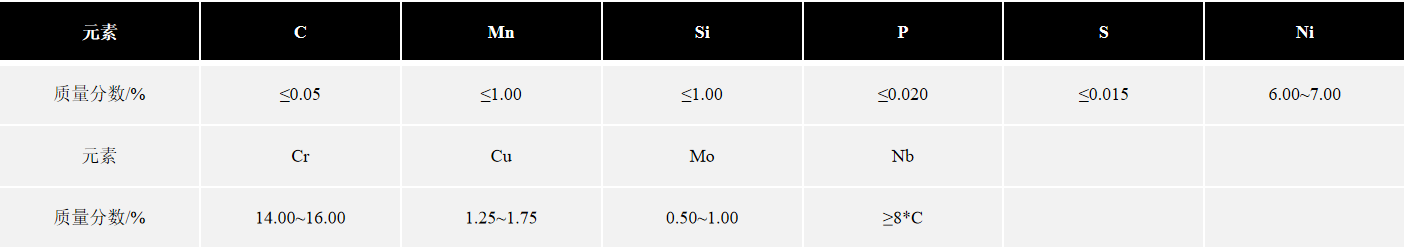

Excerpted from? AMS 5773

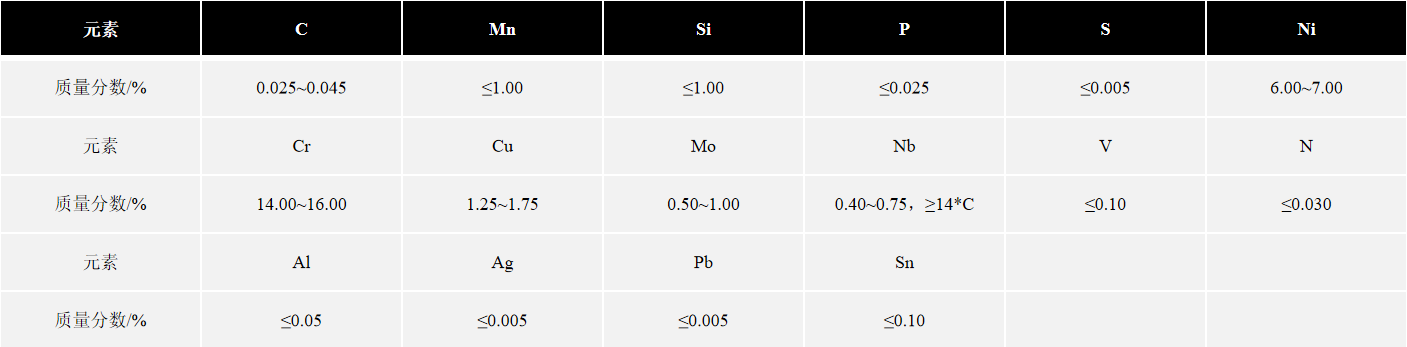

Excerpted from?B50A789，Grades?A, B, E, F, H

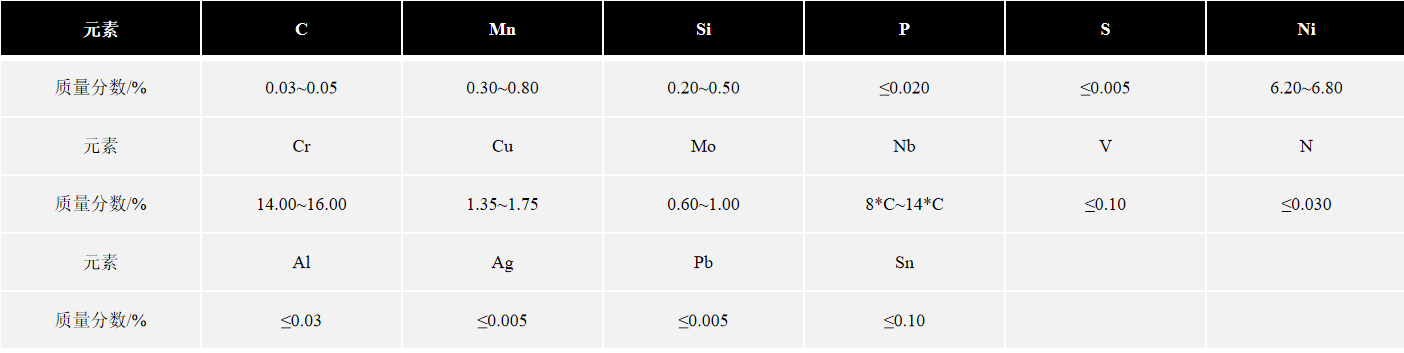

Excerpted from?B50A789，Grades?G

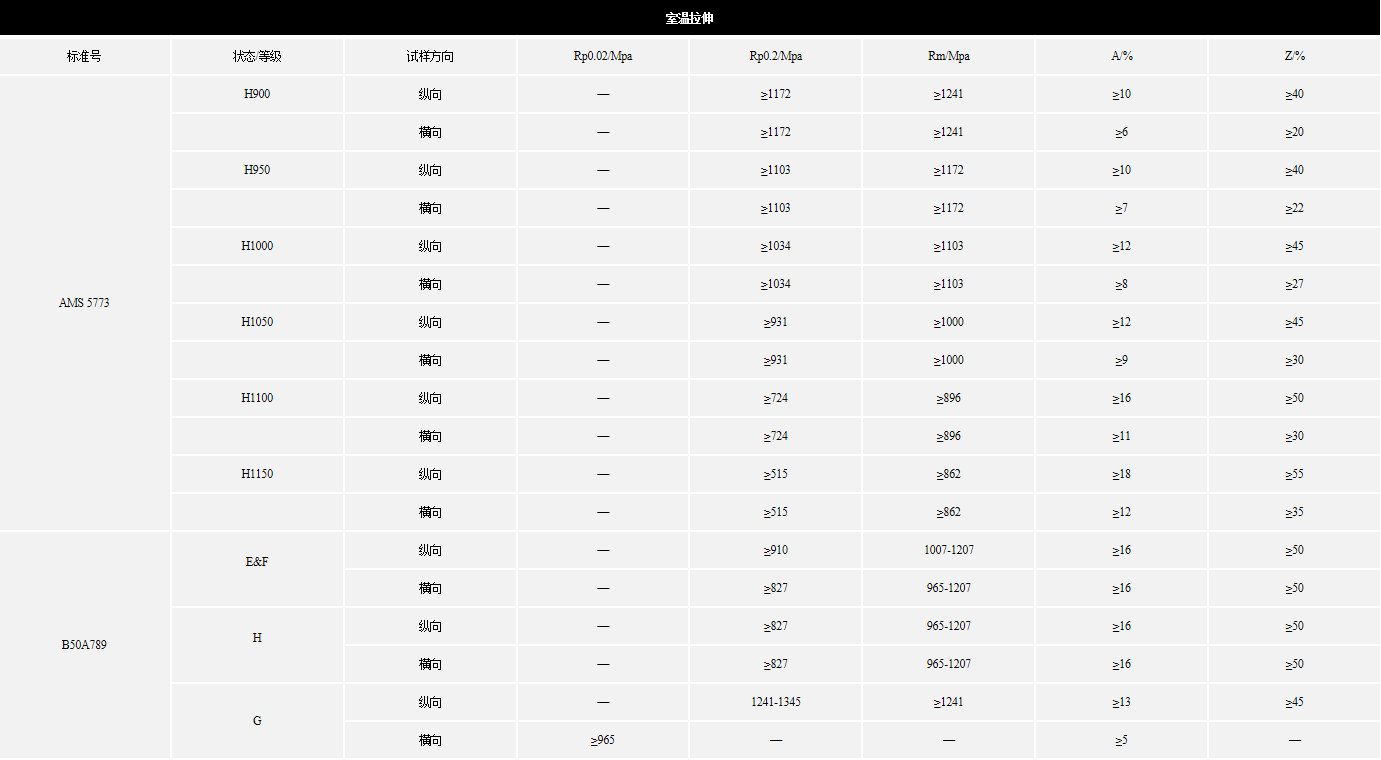

Mechanical Properties
Hardness excerpted from AMS 5773? B50A789

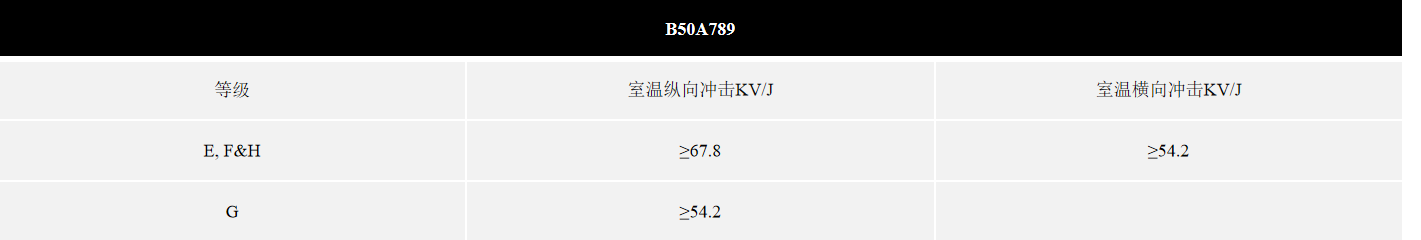

Impact Toughness
Impact Toughness
